Bản vẽ chi tiết

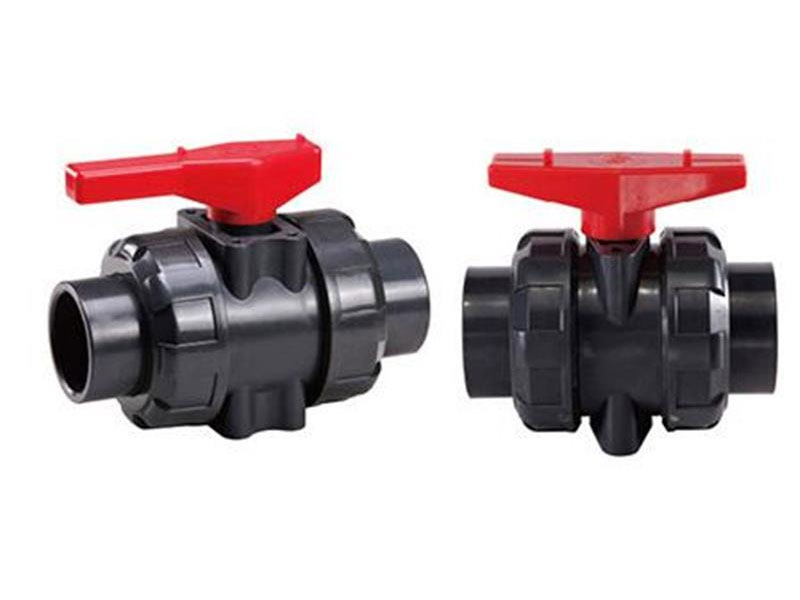

True Union Ball Valve
Size: 1/2" - 4"
Standard : ANSI / JIS / CNS / DIN
Joint End: Socket ( ANSI /CNS/ JIS / DIN )
Threaded ( PT / NPT / BSPF)
Working Pressure: 150 PSI
Operating temperature: PVC (0~55℃); CPVC & PP(0~95℃)

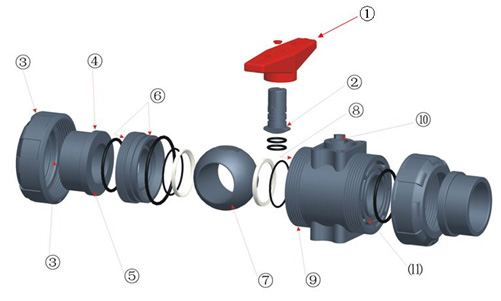

| NO. |
PART |
MATERIAL |
Q|TY |
Unit |
| 3\4\8\9 |
ORING |
EPDM∕VITON |
7 |
pcs |
| 1 |
UNION END |
UPVC∕CPVC∕PPH |
2 |
pcs |
| 2 |
UNION NUT |
UPVC∕CPVC∕PPH |
2 |
pcs |
| 5 |
CAP |
ABS |
1 |
pc |
| 6 |
STEM |
UPVC∕CPVC∕PPH |
1 |
pc |
| 7 |
HANDLE |
ABS |
1 |
pc |
| 10 |
SEAL CARRIER |
UPVC∕CPVC∕PPH |
1 |
pc |
| 11 |
SEAT |
PTFE |
2 |
pcs |
| 12 |
BALL |
UPVC∕CPVC∕PPH |
1 |
pc |
| 13 |
BODY |
UPVC∕CPVC∕PPH |
1 |
pc |
UNIT:MM
| SIZE |
D |
D1 |
D2 |
| ANSI |
DIN |
JIS |
CNS |
ANSI |
DIN |
JIS |
CNS |
| 1/2"（15） |
15 |
21.40 |
20.25 |
22.30 |
22.40 |
21.25 |
20.05 |
21.85 |
21.90 |
| 3/4"(20) |
20 |
26.75 |
25.25 |
26.30 |
26.40 |
26.58 |
25.05 |
25.85 |
25.90 |
| 1"(25) |
25 |
33.52 |
32.25 |
32.33 |
34.50 |
33.28 |
32.05 |
31.85 |
33.90 |
| 1-1/4"(32) |
32 |
42.28 |
40.25 |
38.43 |
42.50 |
42.05 |
40.05 |
37.85 |
41.90 |
| 1-1/2"(40) |
40 |
48.40 |
50.25 |
48.46 |
48.60 |
48.12 |
50.05 |
47.75 |
47.90 |
| 2"(50) |
50 |
60.45 |
63.25 |
60.56 |
60.60 |
60.18 |
63.05 |
59.75 |
59.90 |
| 2-1/2"(65) |
63 |
73.30 |
75.25 |
76.60 |
76.70 |
72.85 |
75.05 |
75.87 |
75.90 |
| 3"(80) |
75 |
89.25 |
90.35 |
89.60 |
89.70 |
88.70 |
90.05 |
88.83 |
88.90 |
| 4"(100) |
90 |
114.60 |
110.35 |
114.70 |
115.00 |
114.10 |
110.05 |
113.98 |
113.8 |

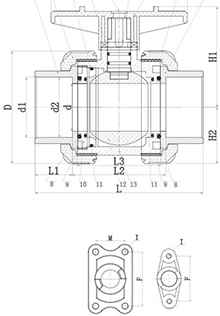

UNIT:MM
| SIZE |
D |
L |
L1 |
L2 |
L3 |
W |
H1 |
H2 |
F |
M |
I |
Operating torque(N.M) |
| 1/2"（15） |
54.00 |
106.00 |
23.00 |
60.00 |
52.00 |
84.00 |
52.50 |
27.50 |
31.00 |
- |
M6 |
2.0 |
| 3/4"(20) |
63.00 |
114.00 |
26.00 |
62.00 |
54.00 |
90.00 |
59.00 |
32.00 |
33.00 |
- |
M6 |
2.5 |
| 1"(25) |
73.50 |
128.00 |
29.00 |
70.00 |
62.00 |
106.00 |
67.50 |
37.25 |
40.00 |
- |
M6 |
4.0 |
| 1-1/4"(32) |
84.50 |
144.00 |
33.00 |
78.00 |
70.00 |
116.00 |
77.50 |
42.75 |
52.00 |
- |
M8 |
5.0 |
| 1-1/2"(40) |
98.00 |
158.50 |
35.50 |
87.50 |
79.50 |
128.00 |
90.00 |
50.00 |
52.00 |
- |
M8 |
7.5 |
| 2"(50) |
118.00 |
172.00 |
38.50 |
95.00 |
85.00 |
140.00 |
106.00 |
60.00 |
70.00 |
- |
M8 |
8.5 |
| 2-1/2"(65) |
150.00 |
278.00 |
64.50 |
144.50 |
132.50 |
198.00 |
136.50 |
76.50 |
84.00 |
45.00 |
M10 |
13 |
| 3"(80) |
169.00 |
310.00 |
70.00 |
166.00 |
150.00 |
218.00 |
149.50 |
86.00 |
84.00 |
45.00 |
M10 |
16 |
| 4"(100) |
190.00 |
352.00 |
84.00 |
181.00 |
157.00 |
235.00 |
166.00 |
98.00 |
121.00 |
49.00 |
M12 |
25 |
