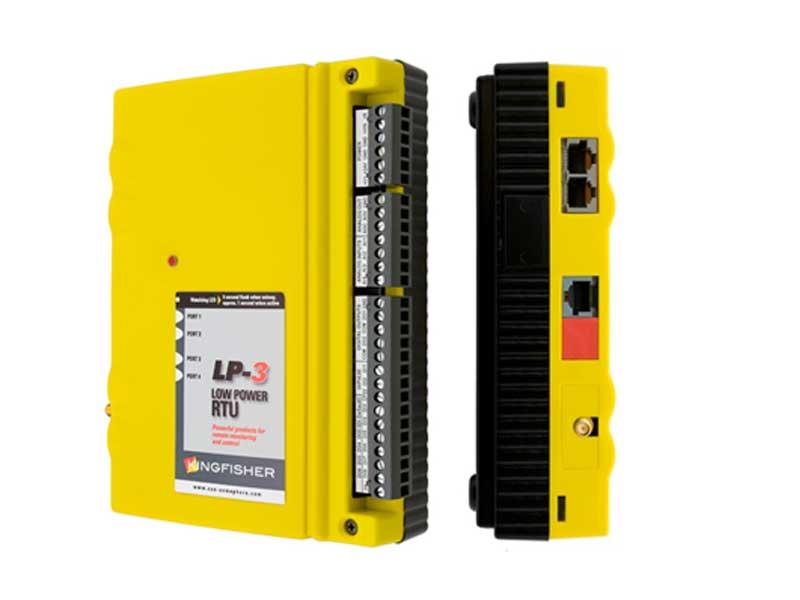

LP-3 Low-Power RTU

LP-3 Low-Power RTU

LP-3 Low-Power RTU

Mã sản phẩm: US0696

Tình trạng : Mời liên hệ

Nhóm sản phẩm: Thiết bị nhiệt điện

Giá bán: Mời liên hệ

Nhận Báo Giá

The LP-3-00 base unit is a fully featured stand alone RTU and has been used extensively throughout Australia and New Zealand in a wide variety of applications including;

Remote Tank Monitoring
Flood level monitoring.
Data Logging and reporting.
Gas Metering.
Power Line fault monitoring.
Plus many more!

Key features include:

Base communications including 1 x RS232 Port, 1 x RS232/485 configurable, plus two communication option sockets which can be fitted with any of the following options in any combination Isolated RS232/485 Serial, Ethernet, HART, PSTN, Private Line, and 900Mhz Spread Spectrum. (Part numbers show at the end of this document

On board IO including
8 x Digital Inputs,
2 x Relay Outputs,
4 x Analog Inputs,
1 x Analog Output.

9-15VDC Input supply

Low Power Sleep function suited directly for operation from Solar

PLC ladder logic programmed with Toolbox32 (free download from the Semaphore Help desk)

Extensive Serial and Ethernet protocol support including DNP3 Slave, Modbus Master and Slave and of course Kingfisher Series II

AGA8 calculations

HART protocol support in conjunction with the HART communication option card.
