Máy nội soi tai mũi họng HD
Model: R3800
Hãng sản xuất: Firefly – Mỹ
Xuất xứ: Mỹ
Thông số kỹ thuật máy chính:
- Tiêu chuẩn chống nước: đầu camera và dây: IPX7, máy chính: IPX0
- Chuẩn gắn: chuẩn phổ thông C-mount
- Cảm biến hình ảnh: CMOS, 2.12 triệu điểm ảnh

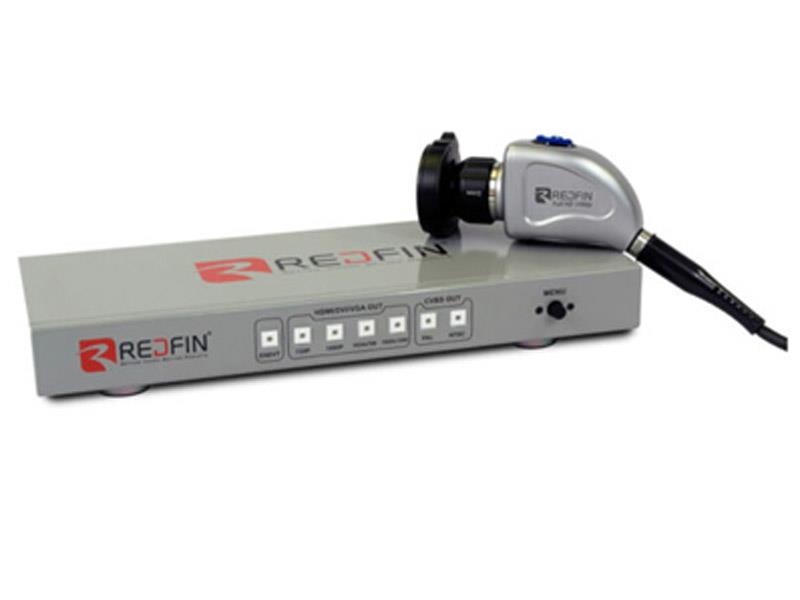

The Redfin R3800 Full HD Mobile Endoscope Camera System is a powerful, 1080p high definition video endoscopy system designed to handle the demands of diagnostic and surgical applications in otolaryngology (ENT), gynecology, urology, plastic surgery, and more.
High quality optics and multiple console output options allow this set to stream a live, Full HD image to any commercial or medical grade monitor. To record the live feed, the Video Console is compatible with any standard video recorder.

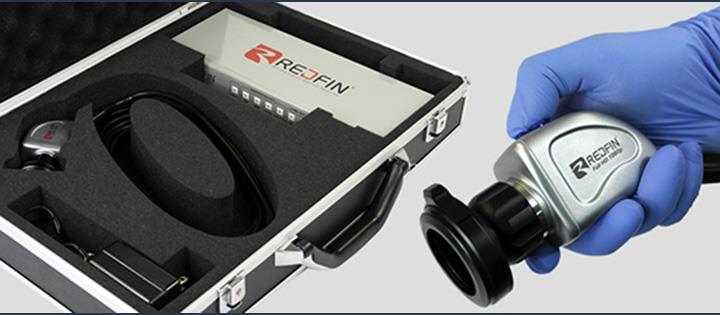

With the included carrying case, it’s easy to travel with the R3800 system for remote procedures or clinics.
The Redfin R3800 delivers a superb, high quality Full HD endoscopic image with an innovative mobile form factor at an extremely affordable price. Its cost enables clinics and hospitals to deploy multiple units where a single unit would normally be used.

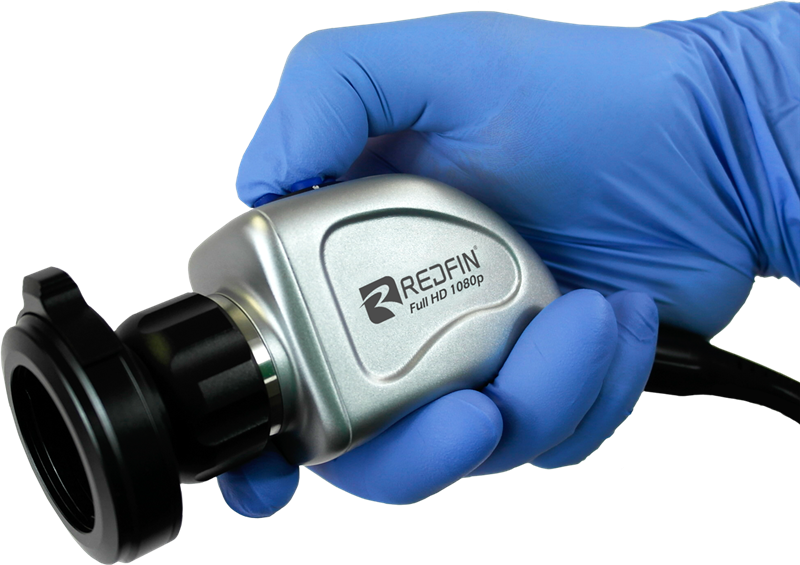

For customers performing multiple procedures per day, we recommend a second R3800 camera head while the first is being disinfected. Camera heads are available without the console. They can be ordered as “R3800C.”
| Technical Details |
|
Weight
(approximate) |
Camera head and cable: 300g / 0.66lbs
Video Console: 900g / 1.98lbs |
Camera Dimensions
(approximate) |
Length: 7.7cm / 3.03in
Width: 4.0cm / 1.57in
Height: 5.3cm / 2.08in |
Console Dimensions
(approximate) |
Length: 28.8cm / 11.3in
Width: 13.5cm / 5.3in
Height: 4.0cm / 1.57in |
| Power Source |
External AC/DC switching power supply
Rating (AC): 100-240 VAC, 1.2A, @ 50 – 60 Hz
Rating (DC): 12 VDC, 2.5A |
Protection against
ingress of water |
Camera head and cable: IP67
Video Console: IP40 |
| Mounting |
C-mount universal coupler |
| Image Sensor |
CMOS sensor, 2.12 M active pixels |

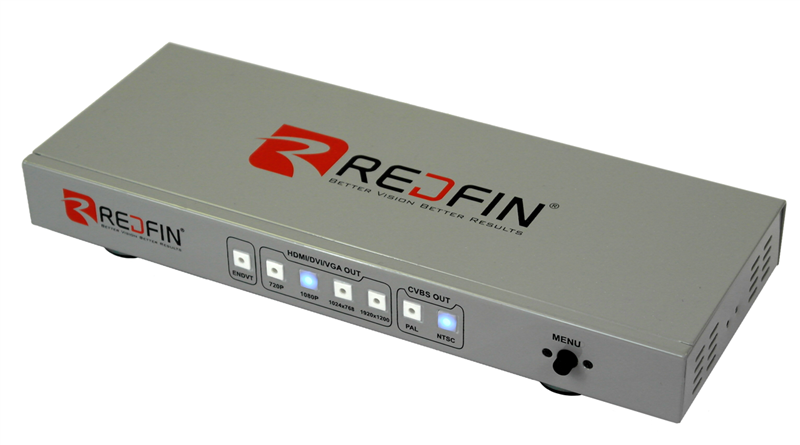

| Console Outputs |
1x HD-SDI
1x HDMI (Type A Connector)
1x DVI
1x VGA
1x Composite |
| Display Formats |
1280×720
1920×1080
1024×768
1920×1200 |
| Operating Conditions |
Temperature: 0°C to +40°C (+32°F to +104°F)
Relative Humidity: 20% to 90% noncondensing |
| Shipping and storage conditions |
Temperature: -20°C to +60°C (-4°F to +140°F)
Relative Humidity: 90% noncondensing max |
