Máy sấy đông khô RM2000

Máy sấy đông khô RM2000

Máy sấy đông khô RM2000

Mời liên hệ

Mã sản phẩm: RM2000

Tình trạng : Còn hàng

Nhóm sản phẩm: Máy sấy đông khô

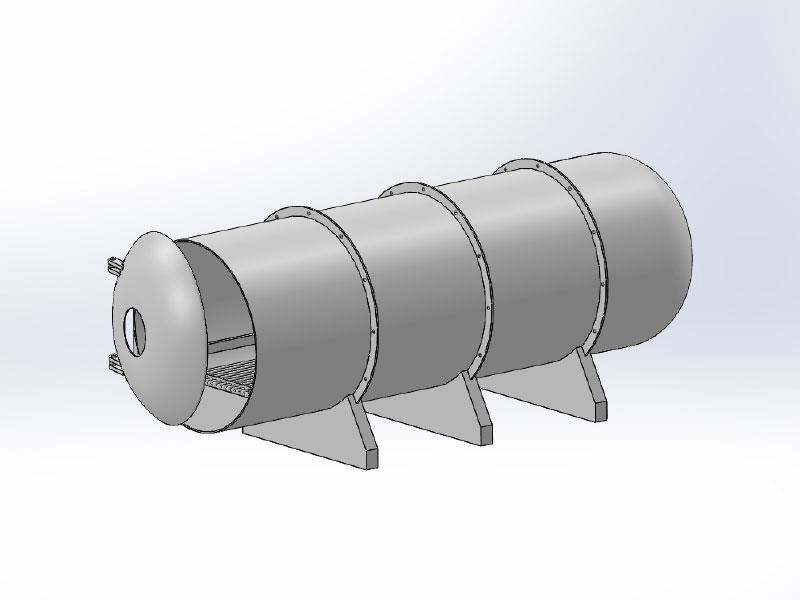

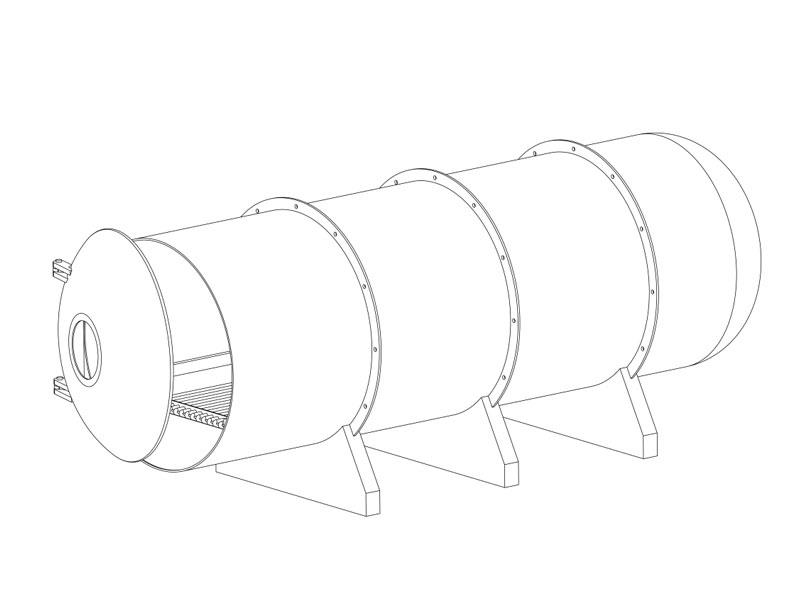

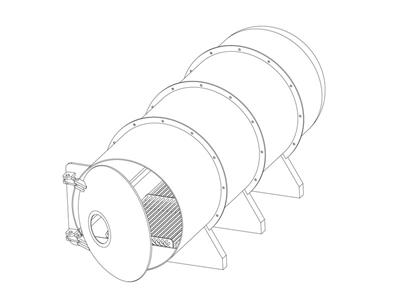

RM2000 is an industrial freeze dryer with 2,000 kg ice capacity, 188 m2 shelf space and doors at both ends. This freeze dryer drying machines for large-scale, commercial freeze drying machines such as food processing.

Sl:
Đặt Mua Ngay

GENERAL SPECIFICATIONS

Dimensions of the Machine Outer (Engine Room Above)
Width: 2600mm Length: 11000mm Height: 5000mm
Dimensions of the Machine Outer (Engine Room Behind)
Width: 2600mm Length: 15000mm Height: 3000mm
Boiler dimensions
Diameter: 2200mm Depth: 15.000mm
Boiler Volume
57900 Litres
Ice Condenser Capacity
0000 kg

Technical Specifications

Physical Specifications
  • Integrated drying and condensation boiler
  • Engine Room Above or Behind the Device
  • Dimensions of the Machine Outer (Engine Room Above)
  • Width: 2600mm Length: 11000mm Height: 5000mm
  • Dimensions of the Machine Outer (Engine Room Behind)
  • Width: 2600mm Length: 15000mm Height: 3000mm
Boiler Volume
  • 57900 Litres
  • Cylindirical Drying Boiler
  • Diameter: 2200mm Depth: 10500mm
  • Entire Boiler AISI R304L
  • It is made of stainless steel.
  • Leakage Rate (Empty, Dry, Cold Boiler)
  • 0.09mbar/sec
Cover
  • Front and/or Rear-loading stainless
  • 25cm viewing window
  • Silicone gasket
  • Manual or pneumatic lock
  • Complete AISI 304L cover
Ice Condenser
  • Standard Temperature min -45 Degrees Celsius
  • Optional Temperature min -75 Degrees Celsius
  • Condenser capacity 2000 kg
Cooling Group
  • R404A gas
  • Air Cooled optional water cooling
  • 6x30HP cooling power
  • Hot gas defrost
  • Gas pressure protection
  • Efficient and effective compressor power management with VFD
  • Cooling Rate 20 > -40 @ 30 minutes
Shelves
  • Shelf dimensions 2.4m x 0.49m
  • Number of shelves 168
  • Tray dimensions 0.47m x 0.8m
  • Number of trays 507
  • Total tray area 188 m^2
  • Usable shelf height 4cm
Heaters
  • PID-controlled
  • Maximum 1 degree surface temperature difference
  • 0.1 degrees Heating sensitivity
  • Maximum adjustable temperature 120 degrees
Measurement System
  • 10 pcs of Product Temperature Probes
  • 8 pcs of serpentine temperature probes
  • 1 pcs of Boiler Temperture Probes
  • 1 pcs of Pirani Gauge Vacuum Sensors
Automation System
  • BECKHOFF PLC
  • 128 Channel PID Temprature Controller
  • 10"  HMI
  • 20 Receipes Fully customizable with 12 steps
  • Cutomizable heat ramp
  • Fully Automatic PID Controlled motor controls
  • For Cooling compressor and Vacuum Pump
  • Ready for SCADA and PC integration
Vacuum System
  • Automatic Dump Valve
  • Automatic Isolation Valve
  • 225m^3 double rotary vane pump and 2500m^3/hr blower
  • VFD controlled vacuum stabilizer
Defrost
  • Hot Gas Defrost
  • Dynamic Air Circulation with Electronic PWM Controlled Fan.
